Horizontal Band Saw Automatic CNC Sawing Machine Metal Cutting 800mm

Why choose our machine?

1. Product selection services, you can give us your workpieces or drawings, then our Professional team will choose the most suitable model for you.
2.Flexible configuration, you tell us your request then we design and produce it.
3.Free training, we supply free training online or at our workshop.
4.Free technical support, including machine brochures, machine inspection certificate, precision inspection book, machine foundation diagram , standard machine tools .
5.7×24 hours service, listen in time and handle your feedback within 24 hours.

The China high precision cnc sawing machine and the saw wheel drives the saw band to cut. There are two main types of band sawing machines: vertical and horizontal. The saw frame of the vertical band saw machine is set vertically, and the work piece moves during cutting to cut the curve contour of the sheet and the formed part. The saw band can also be replaced with a file chain or sanding belt for filing or sanding. The saw frame of the horizontal band saw machine is arranged horizontally or obliquely, and feeds in the vertical direction or the direction of swinging around a point. The saw band is generally twisted by 40° to keep the saw teeth perpendicular to the work piece. Horizontal type is divided into scissors type, double column, single column type band saw; according to the usage, it is divided into manual type (economical manual feeding and manual cutting of materials) and automatic type; according to the automation program using the controller, it can be divided into manual type ( Semi-automatic manual feeding) automatic type (automatic feeding and automatic cutting); according to the cutting angle requirements, it is divided into angle sawing machine (can saw the cutting angle of 90 degrees and 45 degrees) without angle, that is, 90 degrees vertical cutting.

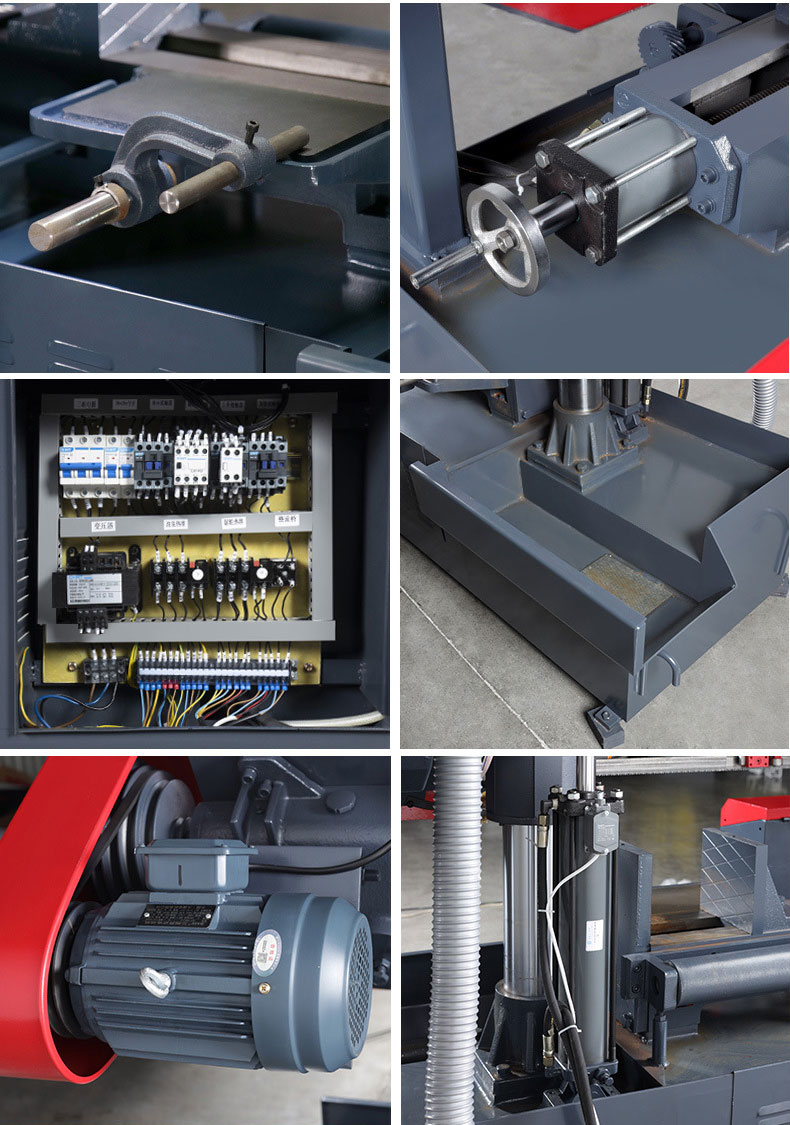

Features of Double Column Horizontal Metal Band Sawing Machine Series Band Sawing Machine:

♣Double column structure, vertical lifting, high stability

♣Hydraulic control of cutting speed, stepless speed regulation

♣Work piece clamping hydraulic clamping, easy to operate

♣Customized three-way hydraulic tightening device

♣The product has the characteristics of compact structure, stable performance, simple operation, high production efficiency, strong safety, etc.

♣Saw blade break induction, automatic emergency shutdown

20 years' production experience

Strong packing will protect the goods from any possible damage during transit

1.Non-fumigation packaging, we use seaworthy plywood.
2. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
3.Water-proof and damp proof, water resistant film wraped all the machine.
4.Fully sheathed case,prevention of collision and keep the goods intact.
