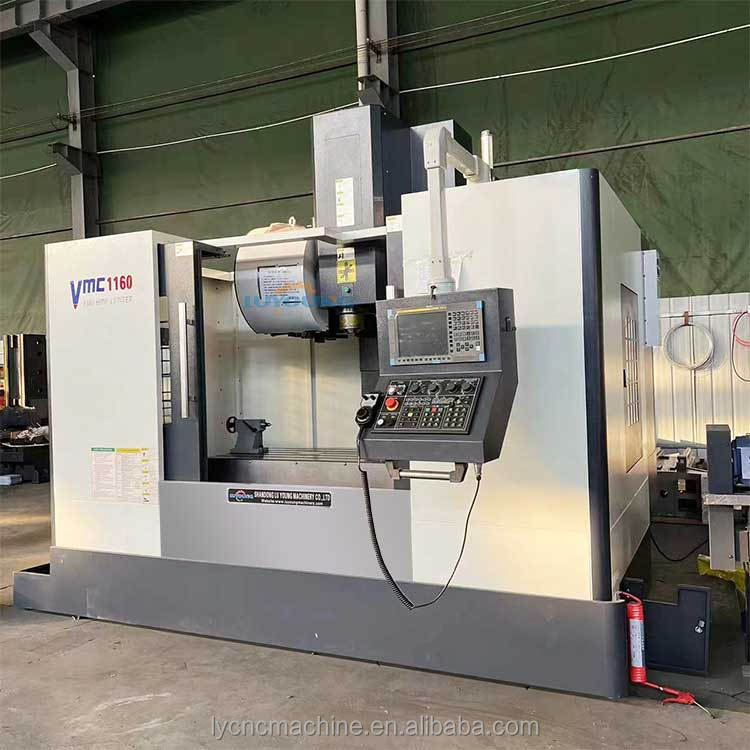

VMC1160 4 Axis 12ATC CNC Vertical Machining Center for Metal Engraving Maintenance

Condition : New

Spindle Taper : BT40

No. of Spindles : Single

Type : VERTICAL

Weight (T) : 7.3 T

Table Size (mm) : 1200*600

CNC Control System : GSK, FANUC, MITSUBISHI, KND, Siemens

Number of Axes : 3, 4, 5

Table Travel (X) (mm) : 1100

Table Travel (Y) (mm) : 600

Table Travel (Z) (mm) : 600

Positioning Accuracy (mm) : ±0.005

Repeatability (X/Y/Z) (mm) : ±0.003

Spindle Motor Power(kW) : 11/15

Max. Table Load(kg) : 650 kg

Min. Time of Tool Change(s) : 2

Tool Magazine Capacity : 16, 20, 24

Key Selling Points : Competitive Price

Warranty : 1 Year

Place of Origin : China

Marketing Type : newest

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

After-sales Service Provided : Engineers available to service machinery overseas

CNC or Not : CNC

Product type : vmc1160 Mitsubishi 3axis 4 axis cnc vertical millinmachine for metal

Travel of X axis(mm) : 1100

Travel of Y axis(mm) : 600

Travel of Z axis(mm) : 600

Max speed of spindle (Rpm) : 8000

Distance of spindle head to table : 130-780mm

Control system : SIEMENS GSK FANUC (optional)

Applicable Industries : Machinery Repair Shops, Manufacturing Plant, Retail

Showroom Location : None

Core Components : Bearing

Price : $35,000.00/sets 1-4 sets

Contact Now

cnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center

VMC1160 4 Axis 12ATC CNC Vertical Machining Center for Metal Engraving Maintenance

XH7124/XH7125/XH7126

Worktable of xh7125:800*240

X/Y/Z axis travel:450*300*380

Worktable of xh7126:800*260
X/Y/Z axis travel:450*320*420

VMC550-VMC650

Worktable of VMC550:800*300
X/Y/Z axis travel:600*350*450

Worktable of VMC650:900*400
X/Y/Z axis travel:650*450*500

VMC850-VMC855

Worktable of VMC850:1000*500
X/Y/Z axis travel:800*550*500

Worktable of VMC855:1000*550
X/Y/Z axis travel:800*550*500

VMC1060/VMC1160

Worktable of vmc1060:1300*600
X/Y/Z axis travel:1000*600*600

Worktable of vmc1160:1200*600
X/Y/Z axis travel:1100*600*600

VMC1270 /VMC1370

Worktable of vmc1270:1400*700
X/Y/Z axis travel:1200*700*700

Worktable of vmc1370:1460*700
X/Y/Z axis travel:1300*700*7500

VMC1580

Worktable of vmc1580:1700*800
X/Y/Z axis travel:1500*800*700

Product Description

vcnc machining milling turning parts cnc VMC1160 machine cnc milling machine for metal 3/4/5 axis composed of mechanical equipment and numerical control system. Is an automated machine that is suitable for efficient machining of complex parts. CNC machining center is the world's highest yield, the most widely used one of the CNC machine tools. Its comprehensive processing capacity is strong, the workpiece can be completed after a single processing content, processing accuracy is higher, the middle of the difficulty of the bulk of the workpiece, the efficiency of ordinary equipment is 5 to 10 times, in particular, it can be completed Many ordinary equipment can not be completed processing, the shape of the more complex, high precision single-piece processing or small and medium-sized multi-species production is more applicable.

Specification of cnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center

Items	Details	Unit	VMC1160
Table	Size	mm	1200×600
		Travel of 3 axis（X/Y/Z)	mm	1100/600/600
		Max, table load	kg	1000
T-slot	Size	mm	5-18×120
Spindle	Spindle taper		BT40
		Distance from Spindle center to Colum guide	mm	650
		Distance of spindle head to table	mm	130-780
		Max speed	rpm	8000
		Motor power	KW	11/15
Accuracy	Positioning accuracy(X/Y/Z)	mm	±0.01/±0.008/±0.008
Accuracy		Repeatability（X/Y/Z)	mm	±0.005
Axis motor	Power of X/Y/Z	Kw	2.5/2.5/2.5
Axis motor		Torque of X/Z	Nm	16/24
Feeding speed	Rapid feed of X/Y/Z	m/min	36/36/24(linear guide way)
		Cutting feed of X/Y/Z	m/min	10
		Weight	Kg	7800
		Dimension	mm	330028002700
		Power	V	3 phase 380V,

Product Feature

CNC Milling Machine With Certificatecnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center

Casting: HT300 resin sand wear-resistant castings have high density and good wear resistance! The saddle adopts a double-layer casting structure, and the large A-shaped column structure shows high rigidity cutting ability.

Spindle: Standard is high speed BT40-150 belt driven Taiwan spindle---8000RPM; Optional is 10000/12000/15000 rpm .simple and compact structure, high efficiency, low noise, low vibration , high precision,and good surface finishing.

Screw:Standard is hardened guide way,optional is Taiwan Hiwin linear guide way.The guide screw adopts the imported JIS-C3 grinding grade pre-stretched nut screw to eliminate the backlash, after heat treatment, it has good rigidity, wear resistance, and guarantees the high precision of the operation.

Auto tool changer:

Taiwan hat type (16 knives) tool magazine. Advantages: low wear, long life, easy adjustment, and low failure rate.Optional configuration is Taiwan 20/24 disc type Auto tool changer.

Controller system

Controller system: there is GSK /KND/SIEMENS/SYNTEC/FANUC controller system could to be choosed

Optional configuraton:cnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center

4th and 5th axis :

4th and 5th axis can be choosed as opintional,Horizontal & vertical cnc rotary table can be choose as optional. Especially for special jobs.High precision, improve processing efficiency, and shorten the processing flow.

PROBE MEASURING

METROL , RENISHAW or PIONEER brand workpiece measuring system and tool measuring system are optional configurations.

Chip conveyor outside machine

The machine tool chip conveyor is mainly used to collect various metal and non-metal scraps produced by the machine and transfer the scraps to the collection vehicle. It can be used in conjunction with the filter water tank to recycle various coolants.

24 tools arm type Auto tool changer

The tool change speed is fast, within 4s. The mechanical arm pulls the tool from the tool magazine and the spindle at the same time and installs it on the spindle and the tool magazine after a 180° rotation to complete the tool change process.

Lu Young

Shandong Lu Young Machinery Co, Ltd. is established in July 1996.We are located in shandong provice.We are one of professional cnc lathe machine, cnc milling machine and swiss lathe machine manufacturer in china.We founded our fast lathe machine factory in 1996 in tengzhou City to produce center lathe and univesal milling machine for over 20 years development,we build three factories.One is for cnc lathe production one for cnc milling production.
We imported advanced production technology and R&D team from Korean in 2001 and build our third factory for

swiss lathe machine production.We own about 500 wokers and 40 engineers, more than 5000 square meter .

Our engineer team have rich experiences for equipment
selection and process design,we can give you professional solution based your workpieces fast and freely.We could product over 1000 sets cnc machine equipment one year. Our cnc machine tools has been exported over 40 countries and get good feedback.

♥ More than 20 years of production experience.
♥Exported more than 40 countries.
♥ More than 300 staffs in factory.
♥ CE and ISO9001 certification .
♥ 7×24 hours online service.

Who choose us

The products have exported more than 40 countries around the world and receive many good feedback from our customer, please look who choose us:

Our service

cnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center

1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.2. Received your phone or mail,we will Analyze the problem immediately. 3.Supply professional solution, after analyze the problem, we give you our best solution. 4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge. 5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use. 6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair. (In case of non-epidemic situation).

FAQ

1.Does cnc machining milling turning parts cnc cnc machining milling turning partsCNC Milling Machine With Certificate /CNC Vertical Machining Center VMC 1160/CNC Milling Machine can be customized?
Of course, if our standard configuration can not meet your needs, please tell us that we redesign and produce the machine to meet your needs
2.How long is the warranty period of CNC Milling Machine With Certificate /CNC cnc milling machine metal vmc1160 with 4 axis 12ATC for metal engraving machining CNC vertical machining center?
Warranty period is one year, if parts damage within one year, we will send free of charge. Free online training or factory
training to ensure that you can use our products properly. We can offer overseas paid installation, commissioning service.

3.What time is your work time?
We work online 24 hours a day, offer quotes and technical support at any time.

4.Do you use the Trade Assurance on ?
Yes, all of the order use this.Can guarantee the quality of the product and your payment.

5.How to get a quote?
Please tell us the model you need or send us drawings of the workpiece, then we can recommend the most suitable products to you. We will give you the best offer within 24 hours.
